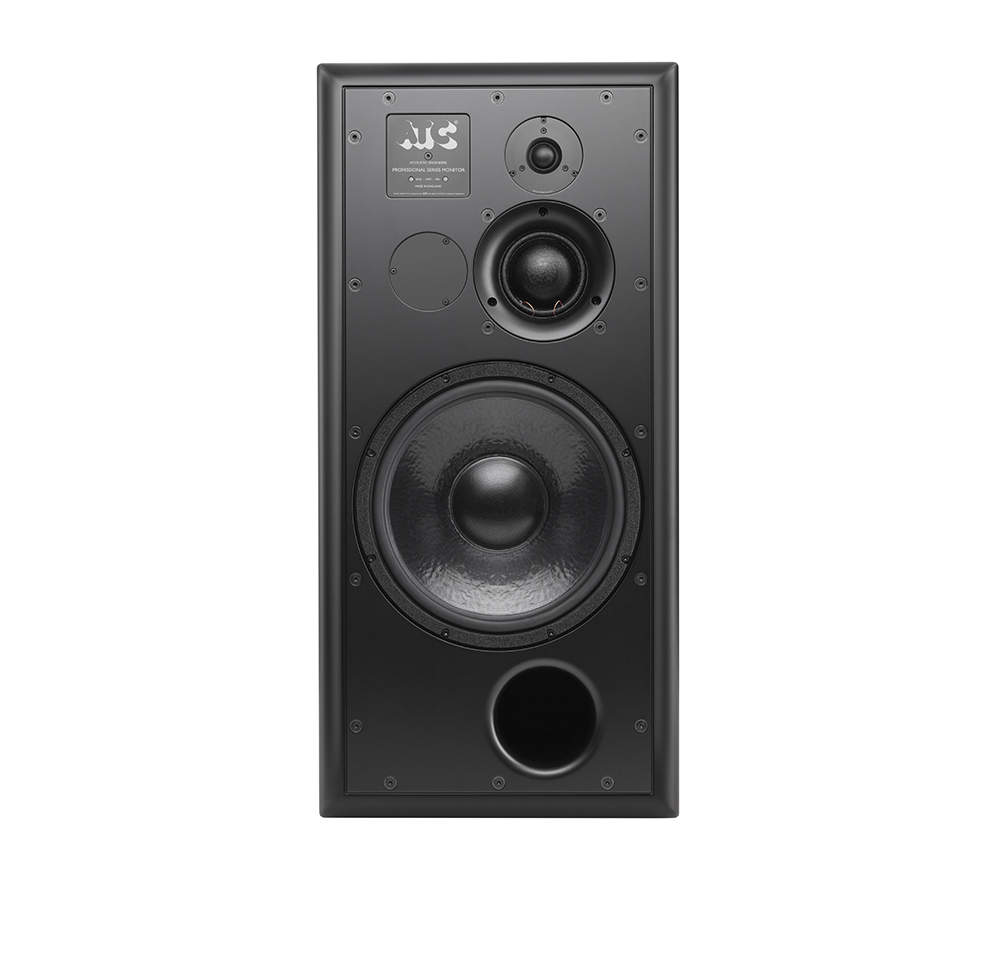

SCM100ASL Pro

• ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.

• Full “SL” spec 12˝/314mm bass driver.

• ATC 3″/75mm “Super Dome” mid driver.

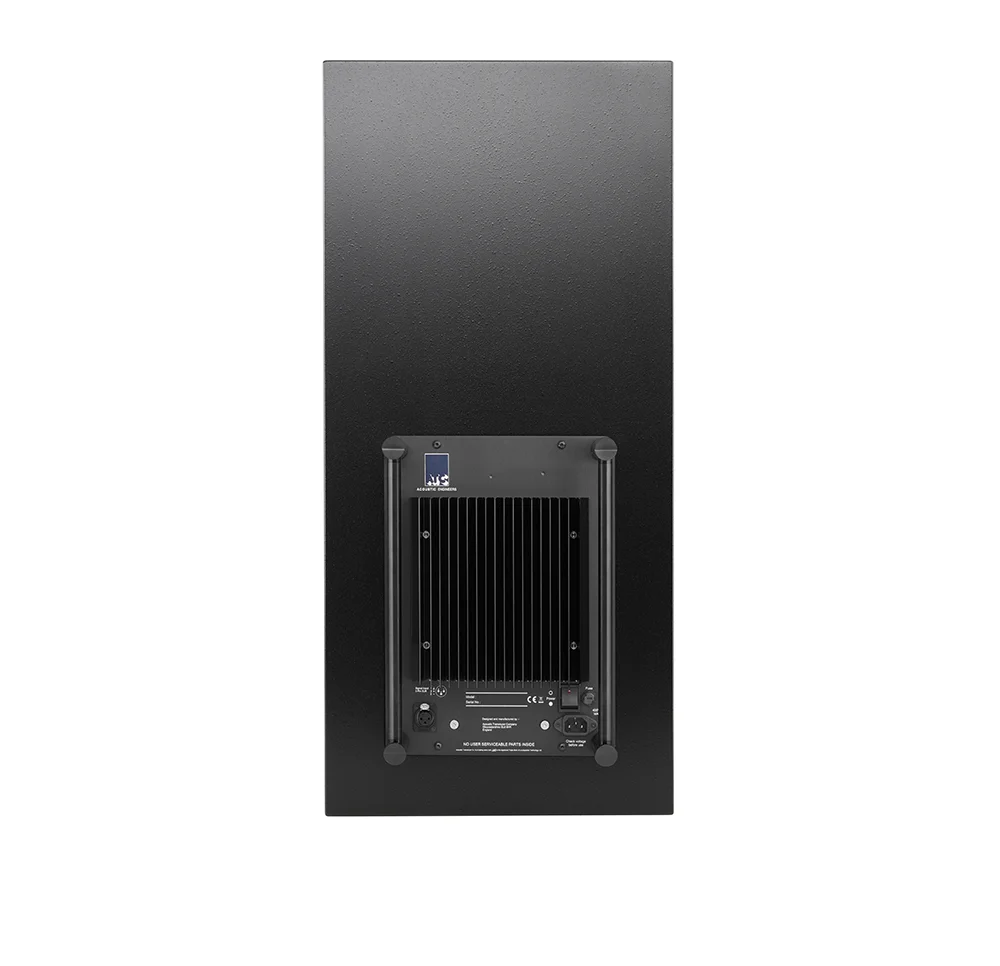

• On board grounded source 350W Tri-amp pack.

• LF contour control.

• Clip indication.

• 6 year warranty.

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 12″/314mm

Amplitude Linearity (±2dB): 65Hz-17kHz

Cut-off Frequencies (-6dB, free-standing): 32Hz, 22kHz

Horizontal Dispersion: ±80°, Coherent

Vertical Dispersion: ±10°, Coherent

Max. Continuous SPL (1 metre): 115dB

Crossover Frequencies: 380Hz, 3.5kHz

Input Connectors: Male XLR

Input Sensitivity: 1V

Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)

Input Impedance: Balanced > 10kΩ

Amplifier Output: Bass 200W, Mid 100W, High 50W

Filters: Even Order Critically Damped

Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection

Front Panel Indicators: Power On indicator, Gain Reduction warning

LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)

Dimensions (HxWxD): 832 x 398 x 581mm. Depth with amplifier at rear adds 3˝

Weight: 65kg
