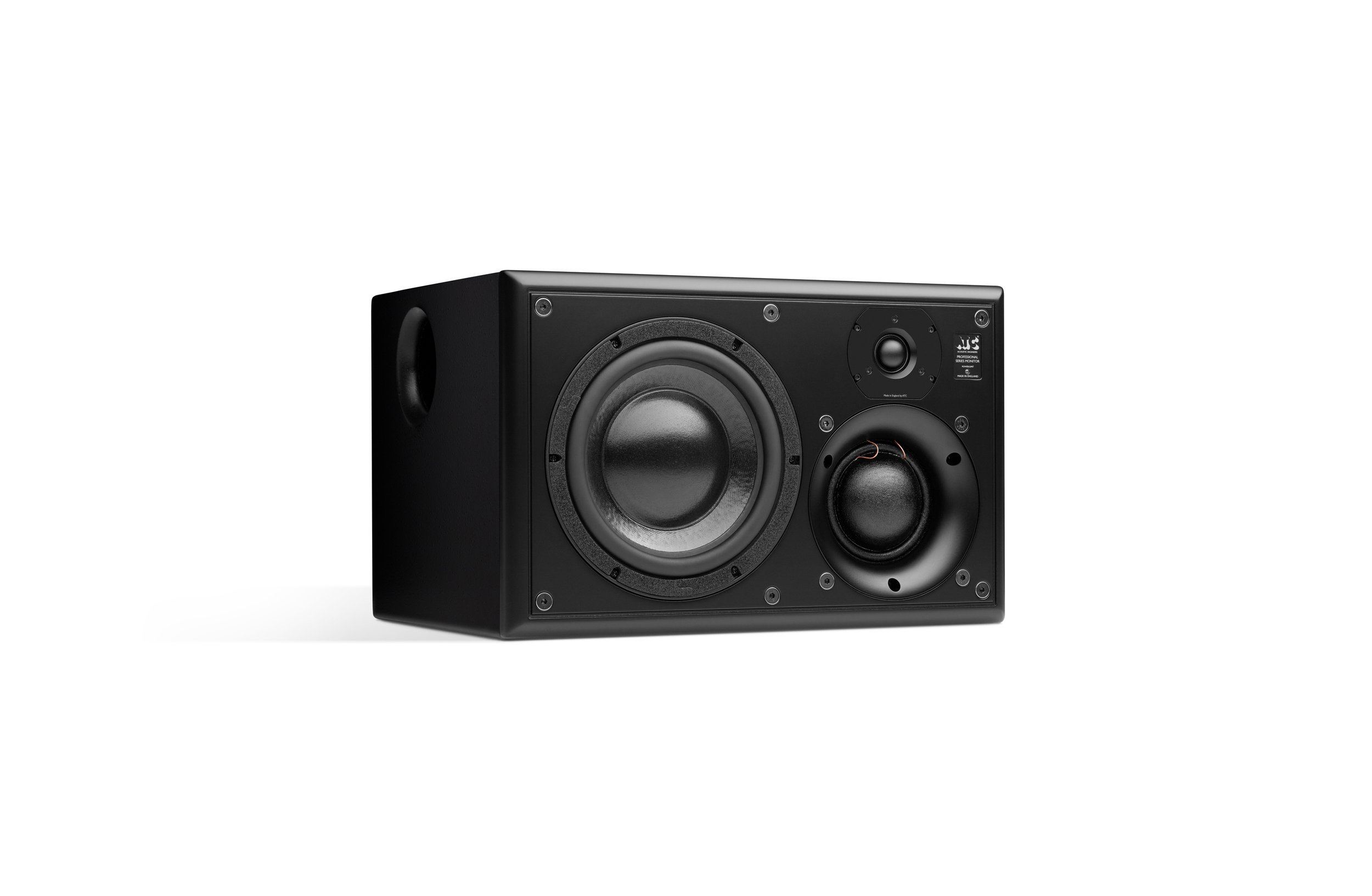

SCM25A Pro Mk2


3-way design featuring ATC SM75-150 Soft Dome mid-range driver.

  • Wide dispersion vs frequency for excellent stereo imaging over a large listening area.

  • ATC discrete MOSFET class A/B amp-pack delivers high dynamic range in combination with very low distortion and an extended HF bandwidth.

  • 4th order active crossovers with all-pass phase compensation ensure outstanding driver integration.

  • Input sensitivity and bass ‘lift’ user controls.

  • Hand-built in England and covered by a 6-year warranty.


Drive Units
Bass: 1 x SB50-164SC 8Ω
Mid: 1 x SM75-150 16Ω
HF: 1 x SH25-76S 6Ω Compact

Low Frequency Cut-off: 47Hz (-6dB, anechoic).
High Frequency Cut-off: 25kHz (-6dB).
Max SPL: 109dB continuous / 115dB peak (Per pair, IEC Weighted Pink Noise, 1m, anechoic).
Sensitivity: +4dBu ref 92dBC (Bass Boot 0dB, Input Sensitivity 1V, Pink noise).


Net Weight: 25.1kg
Product Dimensions: 271 x 430 x 411mm (H x W x D)
