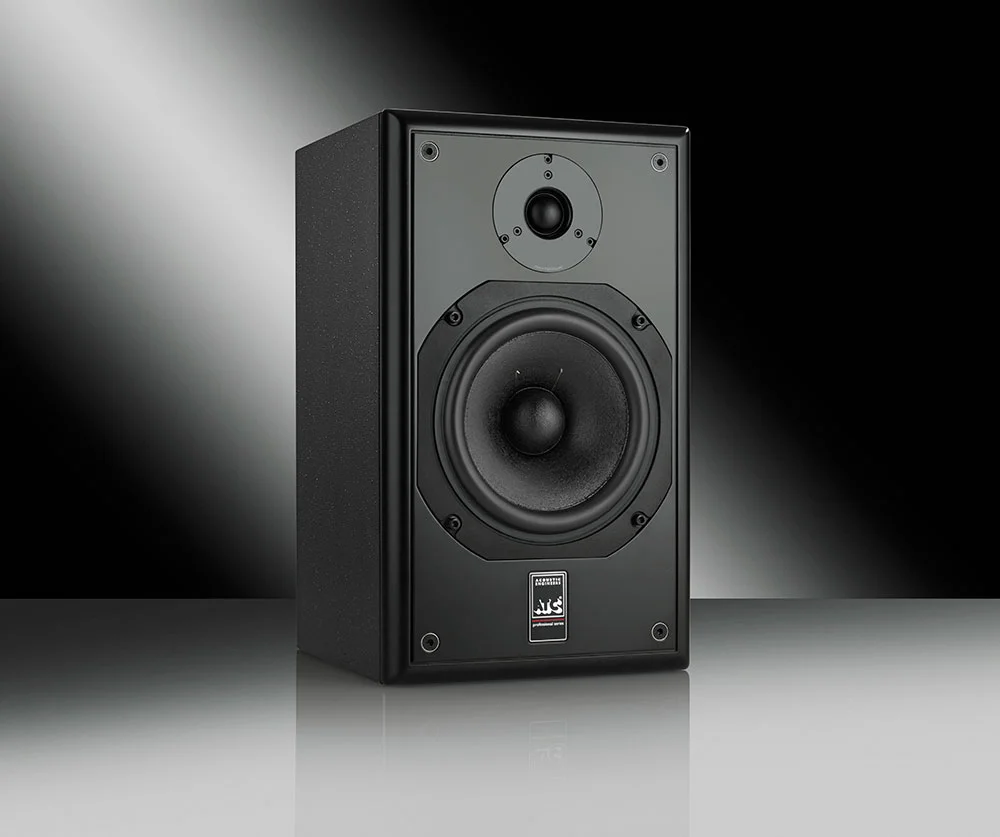

Compact high performance 2-way studio monitor.
Ideally suited to:
– critical near-field listening applications in all control rooms
– LCR surround monitoring in small-to-medium control rooms.
– surround channels for immersive audio (Auro 3D, Dolby Atmos, DTS-X)
Proprietary ATC 150mm/6˝ CLD Mid/Bass Driver.
Proprietary ATC 25mm/1˝ Dual Suspension Tweeter.
Wide dispersion.
6 year warranty.

Drivers: HF ATC 1˝/25mm dual suspension Soft Dome (SH25-76 6 Ohm) LF ATC 6˝/150mm Constrained Layer Damping (CLD) (SB50-150CLD 8 Ohm)

Amplitude Linearity: 80Hz – 16kHz (+/-2dB)

Cut Off Frequencies: 56Hz – 22kHz (-6dB freestanding)

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Maximum Continuous SPL: 108dB (per pair @ 1m)

Crossover Frequency: 2.2kHz

Recommended Power Amplifier: 75 to 300 Watts

Nominal Impedance: 8 Ohm

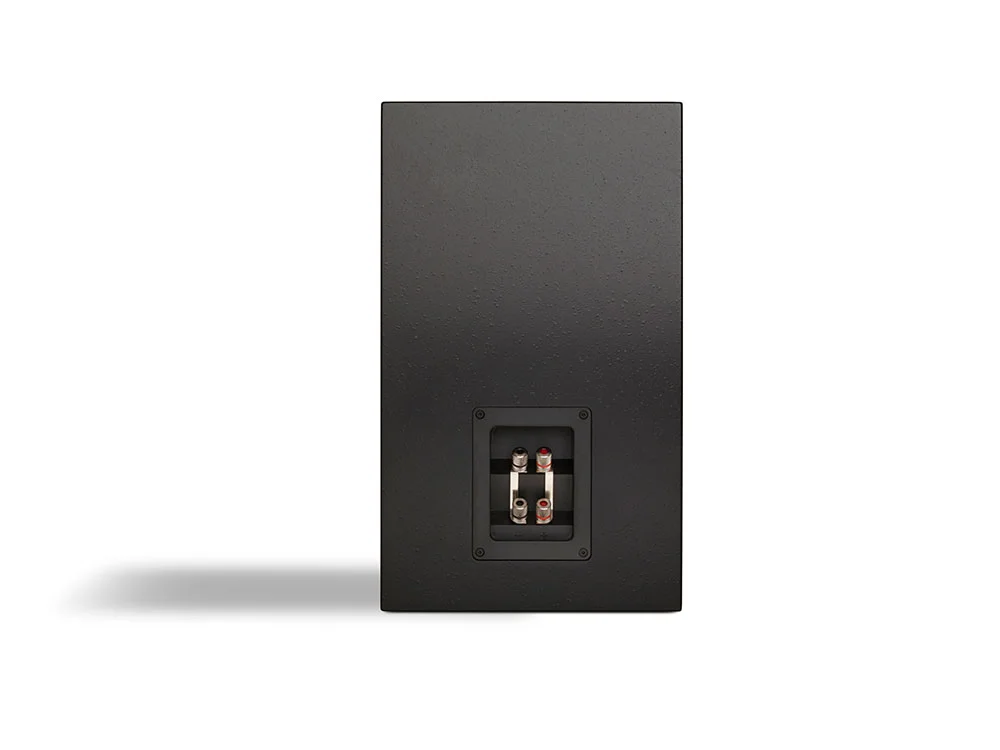

Connectors: Binding Posts/4mm Plugs, bi-wire

Cabinet Dimensions (HxWxD): 400x238x235mm

Weight: 11kg (per cabinet)
